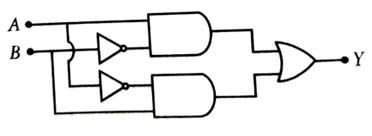

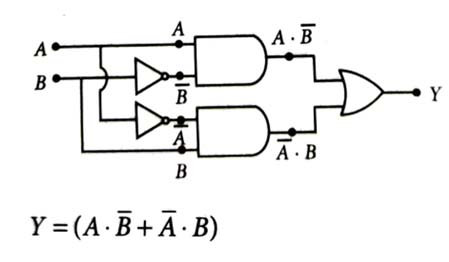

In the combination of the following gates the output Y can be written in terms of inputs A and B as [2018]
(2)

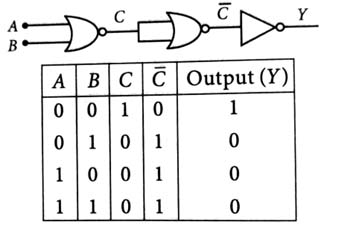

The given electrical network is equivalent to [2017]
OR gate
NOR gate
NOT gate
AND gate
(2)
At output, the truth table corresponds to NOR gate.

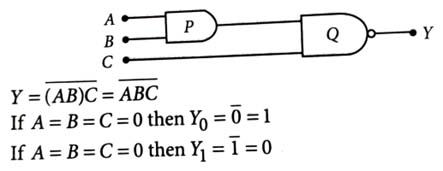

What is the output Y in the following circuit, when all the three inputs A, B, C are first 0 and then 1 ? [2016]
0, 1
0, 0
1, 0
1, 1
(3)
To get output 1 for the following circuit, the correct choice for the input is [2016, 2012, 2010]
A = 1, B = 1, C = 0
A = 1, B = 0, C = 1
A = 0, B = 1, C = 0
A = 1, B = 0, C = 0
(2)
Output of the circuit,
Y = 1 if C = 1 and A = 0, B = 1 or A = 1, B = 0 or A = B = 1
