Two Dimensional Geometry jee mains questions | JEE Main Two Dimensional Geometry Previous Year Question

Q 21 :

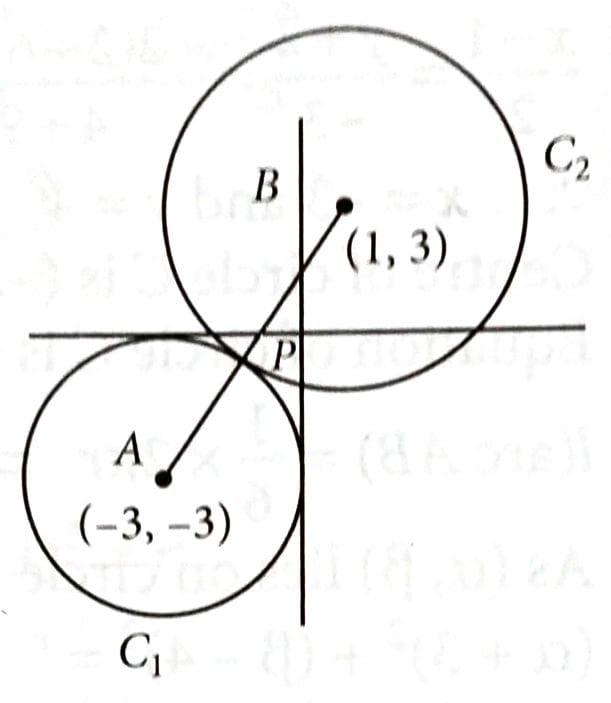

Let $C_{1}$ be the circle in the third quadrant of radius 3, that touches both coordinate axes. Let $C_{2}$ be the circle with centre (1, 3) that touches $C_{1}$ externally at the point $(α, β)$ . If ${(β - α)}^{2} = \frac{m}{n}$ , gcd (m, n) = 1, then m + n is equal to [2025]

31
13
9
22

1

2

3

4

(4)

The equation of circle $C_{1}, {(x + 3)}^{2} + {(y + 3)}^{2} = 3^{2}$

The centres has $C_{1}$ and $C_{2}$ are A(–3, –3) and B(1, 3)

$A B = \sqrt{16 + 36} = 2 \sqrt{13}$

So, the radius are $r_{1} = 3$ and $r_{2} = 2 \sqrt{13} - 3$

The point $P (α, β)$

$α = \frac{r_{1} (1) + r_{2} (- 3)}{r_{1} + r_{2}}, β = \frac{r_{1} (3) + r_{2} (- 3)}{r_{1} + r_{2}}$

$α = \frac{3 - 3 (2 \sqrt{13} - 3)}{2 \sqrt{13}}, β = \frac{3 (3) + (2 \sqrt{3} - 3) (- 3)}{2 \sqrt{13}}$

$\Rightarrow α = \frac{12 - 6 \sqrt{3}}{2 \sqrt{3}}, β = \frac{18 - 6 \sqrt{3}}{2 \sqrt{3}}$

Now, ${(β - α)}^{2} = {(\frac{6}{2 \sqrt{13}})}^{2} = \frac{36}{52} = \frac{9}{13}$ $(Given, {(β - α)}^{2} = \frac{m}{n})$

So, m = 9, n = 13.

So, m + n = 22.

Q 22 :

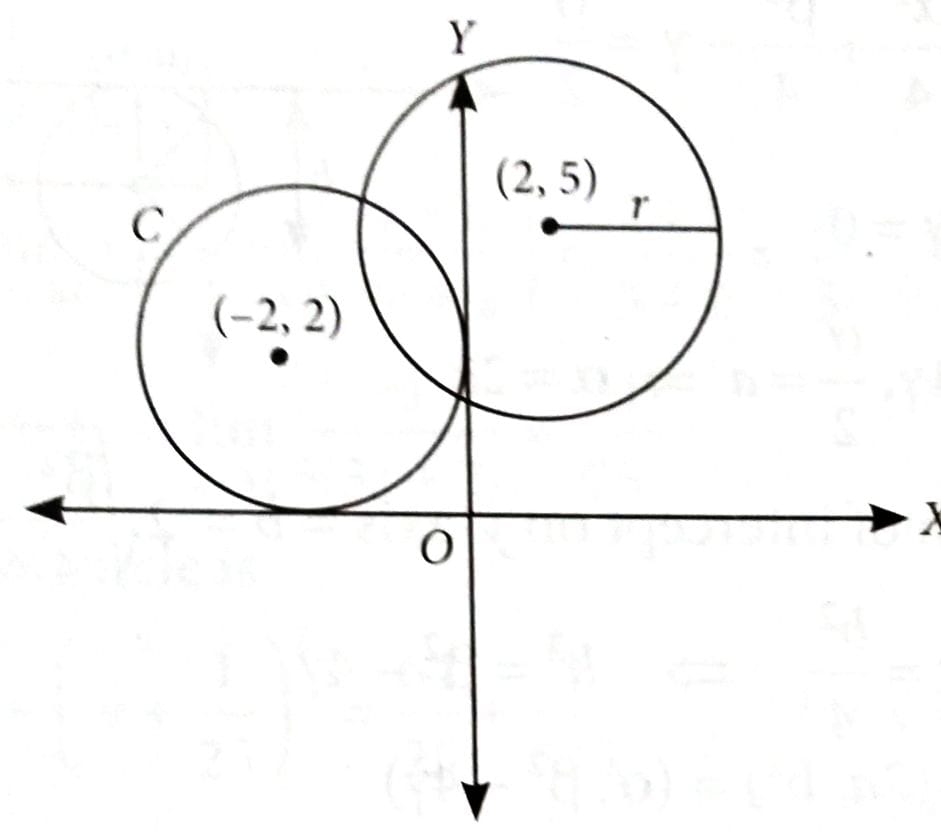

A circle C of radius 2 lies in the second quadrant and touches both the coordinate axes. Let r be the radius of a circle that has centre at the point (2, 5) and intersects the circle C at exactly two points. If the set of all possible values of r is the interval $(α, β)$ , then $3 β - 2 α$ is equal to: [2025]

12
14
10
15

1

2

3

4

(4)

Circle with radius r touches the circle C, when r + 2 = distance between their centres

i.e., $r + 2 = \sqrt{4^{2} + 3^{2}} = 5$

Also, if circle C touches the circle with radius r internally, then

$r = 2 + \sqrt{4^{2} + 3^{2}} = 2 + 5 = 7$

Since, circle with radius r intersects the circle C at exactly 2 points.

$∴ r + 2 > 5 and r < 7 i . e ., 3 < r < 7$

$∴ α = 3, β = 7$

$\Rightarrow 3 β - 2 α = (3) (7) - (2) (3) = 21 - 6 = 15$ .

Q 23 :

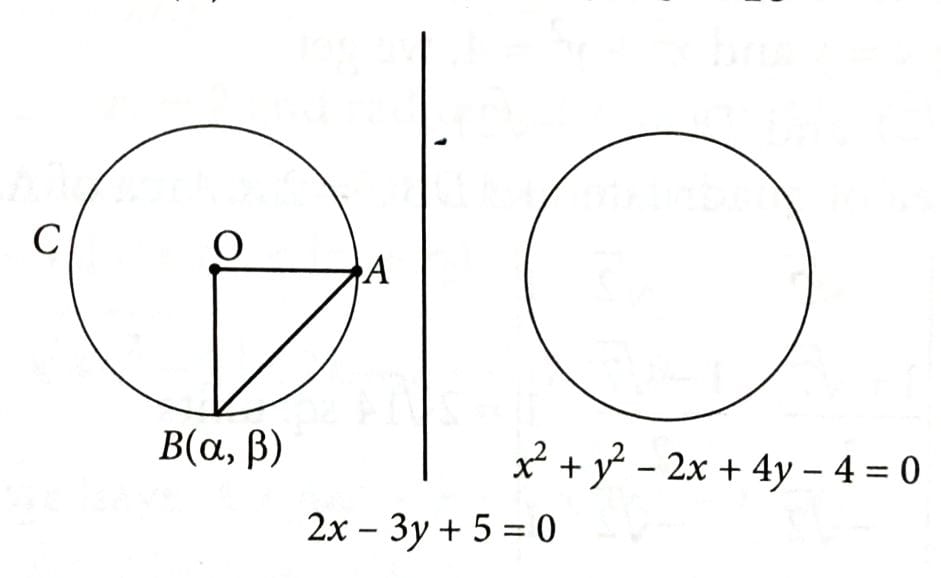

Let circle C be the image of $x^{2} + y^{2} - 2 x + 4 y - 4 = 0$ in the line 2x – 3y + 5 = 0 and A be the point on C such that OA is parallel to x-axis and A lies on the right hand side of the centre O of C. If $B (α, β)$ , with $β < 4$ , lies on C such that the length of the arc AB is ${(1 / 6)}^{th}$ of the perimeter of C, then $β - \sqrt{3} α$ is equal to [2025]

$3 + \sqrt{3}$
$4 - \sqrt{3}$
4
3

1

2

3

4

(3)

Centre of the circle $x^{2} + y^{2} - 2 x + 4 y - 4 = 0$ is (1, –2) and its radius $\sqrt{1 + 4 + 4} = 3$

Image of (1, –2) about 2x – 3y + 5 = 0 is

$\frac{x - 1}{2} = \frac{y + 2}{- 3} = \frac{- 2 (2 + 6 + 5)}{4 + 9} = - 2$

$∴$ x = – 3 and y = 4

Centre of circle C is (–3, 4).

Equation of Circle C is ${(x + 3)}^{2} + {(y - 4)}^{2} = 9$

$l$ $(arc A B) = \frac{1}{6} \times 2 π r \Rightarrow r θ = \frac{1}{6} \times 2 π r \Rightarrow θ = \frac{π}{3}$

As $(α, β)$ lies on circle C,

$\Rightarrow {(α + 3)}^{2} + {(β - 4)}^{2} = 9$ ... (i)

$\Rightarrow$ Coordinates of A are (0, 4) ( $∵$ A lies on right side of O and OA $| |$ x-axis)

Now, $A B^{2} = O A^{2} + O B^{2} - 2 O A \cdot O B \cdot \cos \frac{π}{3}$

$= 9 + 9 - 2 \times 3 \times 3 \times \frac{1}{2} = 9$

$\Rightarrow α^{2} + {(β - 4)}^{2} = 9$ ... (ii)

From (i) and (ii), we get $α = \frac{- 3}{2}$

${(β - 4)}^{2} = 9 - \frac{9}{4} \Rightarrow β = \frac{- 3 \sqrt{3}}{2} + 4 (∵ β < 4)$

Now, $β - \sqrt{3} α = \frac{- 3 \sqrt{3}}{2} + 4 - \sqrt{3} (\frac{- 3}{2}) = 4$ .

Q 24 :

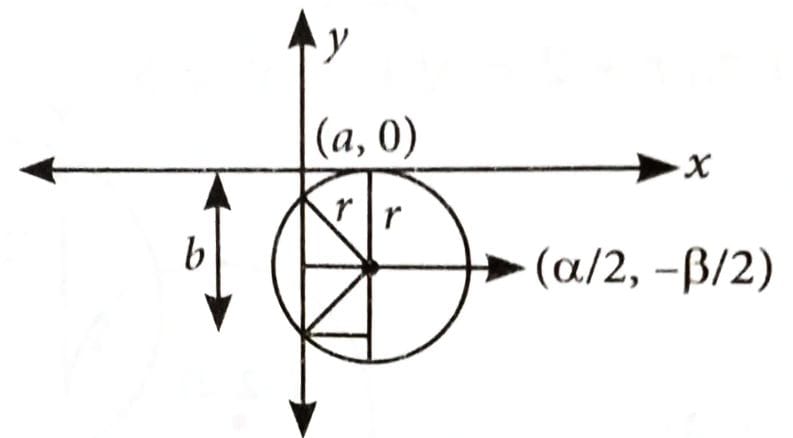

Let the equation of the circle, which touches x-axis at the point (a, 0), a > 0 and cuts off an intercept of length b on y-axis be $x^{2} + y^{2} - α x + β y + γ = 0$ . If the circle lies below x-axis, then the ordered pair ( $2 a, b^{2}$ ) is equal to [2025]

$(γ, β^{2} + 4 α)$
$(γ, β^{2} - 4 α)$
$(α, β^{2} + 4 γ)$
$(α, β^{2} - 4 γ)$

1

2

3

4

(4)

Let, r be the radius of the circle,

$r = \sqrt{\frac{α^{2}}{4} + \frac{β^{2}}{4} - γ} = \frac{β}{2}$

$\Rightarrow \frac{α^{2}}{4} - γ = 0$

$\Rightarrow α^{2} = 4 γ; \frac{α}{2} = a \Rightarrow α = 2 a$

Now, length of intercept on y-axis = $b = 2 \sqrt{\frac{β^{2}}{4} - γ}$

$\Rightarrow \frac{β^{2}}{4} - γ = \frac{b^{2}}{4} \Rightarrow b^{2} = β^{2} - 4 γ$

$∴$ Points ( $2 a, b^{2}$ ) = $(α, β^{2} - 4 γ)$

Q 25 :
Let the line x + y = 1 meet the circle $x^{2} + y^{2} = 4$ at the points A and B. If the line perpendicular to AB and passing through the mid point of the chord AB intersects the circle at C and D, then the area of the quadrilateral ADBC is equal to: [2025]

$3 \sqrt{7}$
$\sqrt{14}$
$2 \sqrt{14}$
$5 \sqrt{7}$

1

2

3

4

(3)

For points of intersection A and B.

Solving x + y = 1 and $x^{2} + y^{2} = 4$ , we get

$A (\frac{1 - \sqrt{7}}{2}, \frac{1 + \sqrt{7}}{2}), B (\frac{1 + \sqrt{7}}{2}, \frac{1 - \sqrt{7}}{2})$

Slope of AB = –1

Slope of $⊥^{r}$ bisector of AB = 1

For points of intersection C and D

Solving, x = y and $x^{2} + y^{2} = 4$ , we get

$C (\sqrt{2}, \sqrt{2})$ and $D (- \sqrt{2}, - \sqrt{2})$

$∴$ Area of quadrilateral ADBC = 2 $\times$ Area of $△$ BCD

$= 2 \times \frac{1}{2}$ $| \begin{matrix} \sqrt{2} & \sqrt{2} & 1 \\ \frac{1 + \sqrt{7}}{2} & \frac{1 - \sqrt{7}}{2} & 1 \\ - \sqrt{2} & - \sqrt{2} & 1 \end{matrix} |$ $= 2 \sqrt{14}$ sq. units.

Q 26 :
Let a circle C pass through the points (4, 2) and (0, 2), and its centre lie on 3x + 2y + 2 = 0. Then the length of the chord, of the circle C, whose mid-point is (1, 2), is: [2025]

$2 \sqrt{2}$
$2 \sqrt{3}$
$4 \sqrt{2}$
$\sqrt{3}$

1

2

3

4

(2)

Since, centre (h, k) lies on 3x + 2y + 2 = 0

$\Rightarrow$ 3h + 2k + 2 = 0 ... (i)

Also, the circle passes through the points (4, 2) and (0, 2), then we can say that ${(x - h)}^{2} + {(y - k)}^{2} = r^{2}$ passes through (4, 2) and (0, 2)

$∴ h^{2} + {(2 - k)}^{2} = r^{2}$ ... (ii)

and ${(4 - h)}^{2} + {(2 - k)}^{2} = r^{2}$ ... (iii)

On subtracting (ii) from (iii), we get

$h^{2} = {(4 - h)}^{2} \Rightarrow h^{2} = 16 + h^{2} - 8 h \Rightarrow h = 2$

From (i), k = – 4

$∴$ Centre = (2, –4)

Radius, $r = \sqrt{{(0 - 2)}^{2} + {(2 + 4)}^{2}} = \sqrt{40}$

Now, mid-point of the chord is (1, 2)

$\Rightarrow$ Perpendicular distance from centre to chord = d

$= \sqrt{{(2 - 1)}^{2} + {(- 4 - 2)}^{2}} = \sqrt{37}$

$∴$ Length of chord = $2 \sqrt{r^{2} - d^{2}} = 2 \sqrt{40 - 37} = 2 \sqrt{3}$

Q 27 :

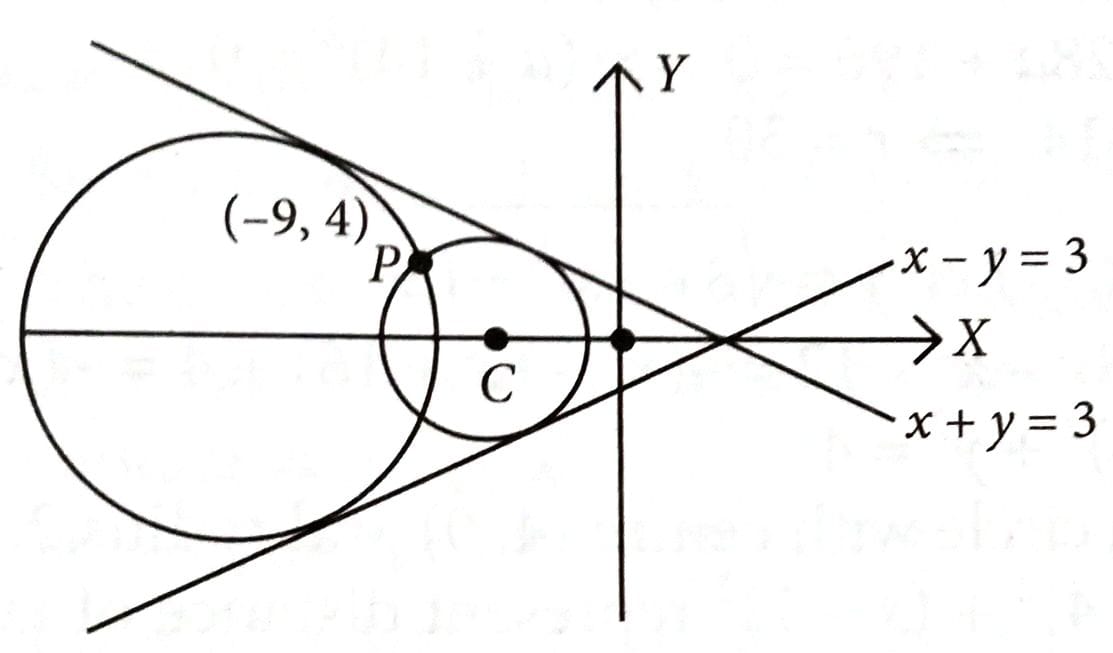

The absolute difference between the squares of the radii of the two circles passing through the point (–9, 4) and touching the lines x + y = 3 and x – y = 3, is equal to __________. [2025]

0%

(768)

We have, x + y = 3 and x – y = 3 are tangents

$∴$ The centre of both circles will lie on x-axis

Equation of circle is

$∴ {(x - α)}^{2} + y^{2} = r^{2}$

Hence, centre is C( $α$ , 0).

$r = P C = \sqrt{{(α + 9)}^{2} + 16}$ ... (i)

Also, $| \frac{α - 3}{\sqrt{2}} |$ $= r$ ... (ii)

From (i) and (ii), we get

$\sqrt{{(α + 9)}^{2} + 16} =$ $| \frac{α - 3}{\sqrt{2}} |$

$\Rightarrow α = - 5 or - 37$

$r =$ $| \frac{- 5 - 3}{\sqrt{2}} |$ $or$ $| \frac{- 37 - 3}{\sqrt{2}} |$ $= 4 \sqrt{2} or 20 \sqrt{2}$

$∴$ Now, $| r_{1}^{2} - r_{2}^{2} |$ $=$ $| {(4 \sqrt{2})}^{2} - {(20 \sqrt{2})}^{2} |$ $= 768$ .

Q 28 :

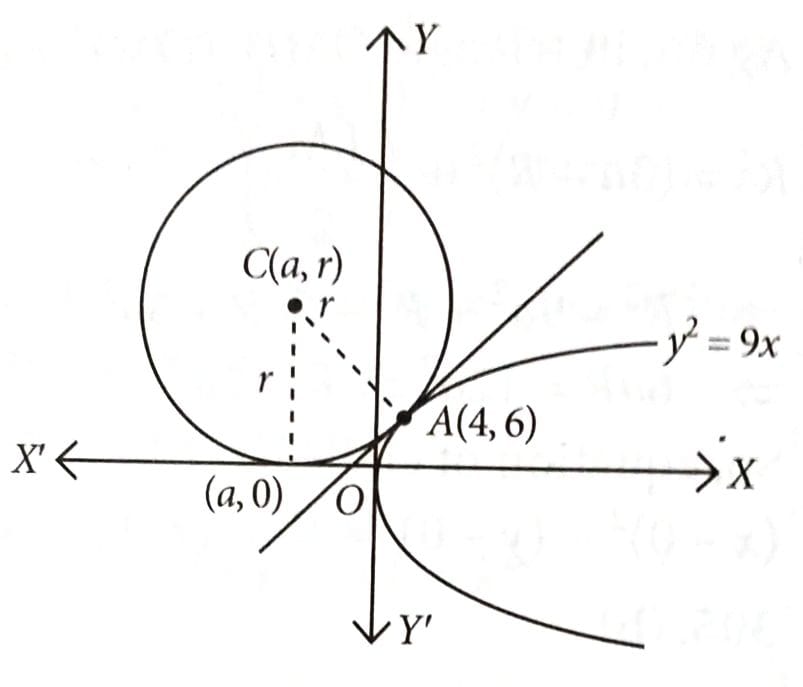

Let r be the radius of the circle, which touches x-axis at point (a, 0), a < 0 and the parabola $y^{2} = 9 x$ at the point (4, 6). Then r is equal to __________. [2025]

0%

(30)

Equation of circle is given by

${(x - a)}^{2} + {(y - r)}^{2} = r^{2}$

Now, circle passes through the point A(4, 6). So, we have

${(4 - a)}^{2} + {(6 - r)}^{2} = r^{2}$

$\Rightarrow 16 + a^{2} - 8 a + 36 + r^{2} - 12 r = r^{2}$

$\Rightarrow a^{2} - 12 r - 8 a + 52 = 0$ ... (i)

Equation of tangent to the barabola $y^{2} = 9 x$ at the point A(4, 6) is given by $y y_{1} = 2 a (x + x_{1})$

$\Rightarrow 6 y = \frac{2 \times 9}{4} (x + 4) \Rightarrow 6 y = \frac{9 x + 36}{2}$

$\Rightarrow 3 x - 4 y + 12 = 0$

Distance of this line from centre of circle is equal to radius of circle.

$∴$ $| \frac{3 a - 4 r + 12}{\sqrt{9 + 16}} |$ $= r$

$\Rightarrow 3 a - 4 r + 12 = \pm 5 r$

$\Rightarrow 3 a + 12 = 9 r or 3 a + 12 = - r$

If 3a + 12 = 9r i.e., a + 4 = 3r, then by using equation (i), we get

$a^{2} - 12 (\frac{a + 4}{3}) - 8 a + 52 = 0$

$\Rightarrow a^{2} - 4 a - 16 - 8 a + 52 = 0 \Rightarrow a^{2} - 12 a + 36 = 0$

$\Rightarrow {(a - 6)}^{2} = 0 \Rightarrow a = 6 but a < 0 \Rightarrow a \neq 6$

Now, if 3a + 12 = – r, so by using equation (i), we get

$a^{2} - 8 a + 12 (3 a + 12) + 52 = 0$

$\Rightarrow a^{2} + 28 a + 196 = 0 \Rightarrow {(a + 14)}^{2} = 0$

$\Rightarrow a = - 14 \Rightarrow r = 30$ .
