Representation and Components of Vector | Vectors previous year questions

Q 1 :

A vector has magnitude same as that of $\vec{A} = 3 \hat{i} + 4 \hat{j}$ and is parallel to $\vec{B} = 4 \hat{i} + 3 \hat{j}$ . The $x$ and $y$ components of this vector in first quadrant are $x$ and 3 respectively where $x =$ _________ . [2024]

(4) Given $\vec{A} = 3 i + 4 j,$ $\vec{B} = 4 i + 3 j,$

$| A | = \sqrt{3^{2} + 4^{2}} = 5,$ $\hat{B} = \frac{4 i + 3 j}{5}, \frac{\vec{B}}{| B |} = \hat{B}$

Now, as per question, $\vec{C} = | A | \hat{B},$ mag of $\vec{A}$ and direction of B

$= (5) \frac{(4 i + 3 j)}{5} = 4 i + 3 j, 4 i + 3 j,$ $∴ x = 4$

Q 2 :

The position vector of a moving body at any instant of time is given as $\vec{r} = (5 t^{2} \hat{i} - 5 t \hat{j}) m$ . The magnitude and direction of velocity at t = 2 s is, [2025]

$5 \sqrt{15}$ m/s, making an angle of $\tan^{- 1}$ 4 with –ve Y axis
$5 \sqrt{15}$ m/s, making an angle of $\tan^{- 1}$ 4 with +ve X axis
$5 \sqrt{17}$ m/s, making an angle of $\tan^{- 1}$ 4 with –ve Y axis
$5 \sqrt{17}$ m/s, making an angle of $\tan^{- 1}$ 4 with +ve X axis

1

2

3

4

(3)

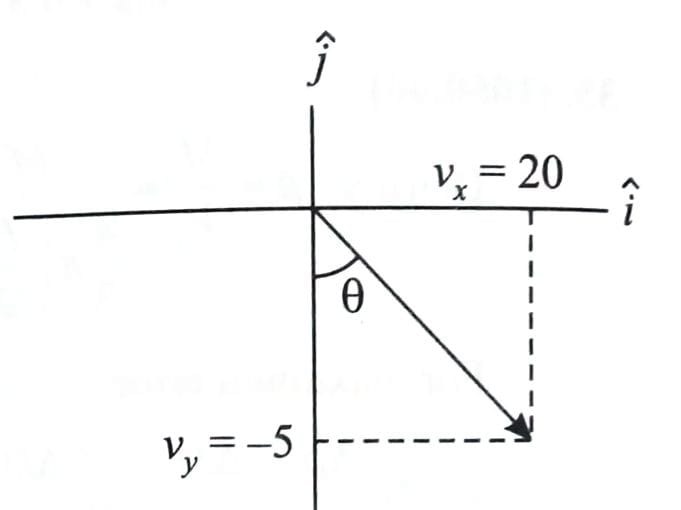

$\vec{r} = 5 t^{2} \hat{i} - 5 \hat{j}$

$\vec{v} = 10 t \hat{i} - 5 \hat{j}$

$\vec{v} = 20 \hat{i} - 5 \hat{j} at t = 2 \sec$

$| \vec{v} | = 5 \sqrt{17} m / s$

$\tan θ = \frac{20}{5} = 4$

$θ = \tan^{- 1}$ 4 with –ve Y-axis

Q 3 :

A light wave is propagating with plane wave fronts of the type x + y + z = constant. The angle made by the direction of wave propagation with the x-axis is: [2025]

$\cos^{- 1} (\frac{1}{\sqrt{3}})$
$\cos^{- 1} (\frac{2}{3})$
$\cos^{- 1} (\frac{1}{3})$
$\cos^{- 1} (\sqrt{\frac{2}{3}})$

1

2

3

4

(1)

Direction of propagation $\vec{A} = \hat{i} + \hat{j} + \hat{k}$

The direction of propagation of light is perpendicular to the wave front and is symmetric about x, y and z-axis.

Direction cosine associated with x-axis,

$\cos α = (\frac{A_{x}}{\sqrt{A_{x}^{2} + A_{y}^{2} + A_{z}^{2}}})$

$\cos α = (\frac{1}{\sqrt{1 + 1 + 1}}) \Rightarrow α = \cos^{- 1} (\frac{1}{\sqrt{3}})$

Q 4 :

A vector in x-y plane makes an angle of 30° with y-axis. The magnitude of y-component of vector is $2 \sqrt{3}$ . The magnitude of x-component of the vector will be [2023]

$\frac{1}{\sqrt{3}}$
6
$\sqrt{3}$
2

1

2

3

4

(4)

$A_{y} = A \cos 30 ° = 2 \sqrt{3}$

$\Rightarrow A \frac{\sqrt{3}}{2} = 2 \sqrt{3}$

$\Rightarrow A = 4$

Now, $A_{x} = A \sin 30 ° = 4 \times \frac{1}{2} = 2$

Q 5 :

When the position vector $\vec{r} = x \hat{i} + y \hat{j} + z \hat{k}$ changes sign as $- \vec{r}$ which one of the following vector will not flip under sign change ? [2026]

Velocity
Linear momentum
Angular momentum
Acceleration

1

2

3

4

(3)

$\vec{r} = x \hat{i} + y \hat{j} + z \hat{k}$

$\vec{v} = \frac{d \vec{r}}{d t} = v_{x} \hat{i} + v_{y} \hat{j} + v_{z} \hat{k}$

$\vec{p} = m \vec{v}$

$\vec{L} = m (\vec{r} \times \vec{v})$

$= (x \hat{i} + y \hat{j} + z \hat{k}) \times m (v_{x} \hat{i} + v_{y} \hat{j} + v_{z} \hat{k})$

$When sign of \vec{r} changes, \vec{L} remains same.$
