Fluid Mechanics | Surface Tension And Viscosity | JEE Main previous year questions with Solutions

Q 1 :
Given below are two statements:

Statement (I):Viscosity of gases is greater than that of liquids.

Statement (II): Surface tension of a liquid decreases due to the presence of insoluble impurities.

In the light of the above statements, choose the most appropriate answer from the options given below: [2024]

Statement I is correct but statement II is incorrect
Statement I is incorrect but Statement II is correct
Both Statement I and Statement II are incorrect
Both Statement I and Statement II are correct

1

2

3

4

(2)

Gases have less viscosity.

Due to insoluble impurities like detergent, surface tension decreases.

Q 2 :
A small liquid drop of radius R is divided into 27 identical liquid drops. If the surface tension is T, then the work done in the process will be [2024]

$4 {πR}^{2} T$
$8 {πR}^{2} T$
$3 {πR}^{2} T$
$1 / 8 {πR}^{2} T$

1

2

3

4

(2)

Volume of liquid of drops should be constant,

$\frac{4}{3} {πR}^{3} = 27 \times \frac{4}{3} \times {πr}^{3}$

$R^{3} = 27 r^{3} \Rightarrow R = 3 r$

$r = \frac{R}{3} \Rightarrow r^{2} = \frac{R^{2}}{9}$

Work done = $T \cdot ∆ A$

$= 27 T (4 {πr}^{2}) - T 4 {πR}^{2}$

$= 27 T 4 π \frac{R^{2}}{9} - 4 {πR}^{2} T = 8 {πR}^{2} T$

Q 3 :
A big drop is formed by coalescing 1000 small droplets of water. The surface energy will become [2024]

100 times
10 times
$\frac{1}{100}$ th
$\frac{1}{10}$ th

1

2

3

4

(4)

Lets say radius of small droplets is $r$ and that of big drop is R,

By conservation of volume:

$\frac{4}{3} {πR}^{3} = 1000 \frac{4}{3} {πr}^{3} \Rightarrow R = 10 r$

$∴$ Surface energy of 1000 droplets

$U_{i} = 1000 (4 {πr}^{2} S)$

$U_{f} = 4 π R^{2} = 100 (4 {πr}^{2} S)$

$U_{f} = \frac{1}{10} U_{i}$

Q 4 :
A soap bubble is blown to a diameter of 7 cm. 36960 erg of work is done in blowing it further. If surface tension of soap solution is 40 dyne/cm then the new radius is _______ cm. Take $(π = \frac{22}{7})$ [2024]

0%

(7) $Δ W = 2 T \cdot 4 π r_{2}^{2} - 2 T \cdot 4 π r_{1}^{2}$

$r_{2}^{2} - r_{1}^{2} = \frac{Δ W}{8 T π} = \frac{36960 \times 7}{8 \times 40 \times 22} = 36.75$

$r_{2}^{2} = 36.75 + \frac{49}{4} = 49 \Rightarrow r_{2} = 7 cm$

Q 5 :
A big drop is formed by coalescing 1000 small identical drops of water. If $E_{1}$ be the total surface energy of 1000 small drops of water and $E_{2}$ be the surface energy of single big drop of water, the $E_{1} : E_{0}$ is $x : 1$ where $x =$ __________ . [2024]

0%

(10) Let radius of small drops = r

Let radius of big drops = R

Here volume will remain conserve (volume conservation)

$∴ (1000) V_{s} = (1) V_{b} \to volume of big drop$

$Volume of small drop \Rightarrow 10^{3} (\frac{4}{3} π r^{3}) = \frac{4}{3} π R^{3}$

$R = 10 r$

$We know, surface tension = \frac{Surface energy}{Area}$

$∴ Surface energy = (Surface tension) (Area)$

$\Rightarrow ε_{1} = T \times 4 π r^{2} \times 10^{3}$

$ε_{2} = T \times 4 π R^{2}$

$∴ \frac{ε_{1}}{ε_{2}} = \frac{(10^{3}) (r^{2})}{R^{2}} = \frac{(10^{3}) r^{2}}{{(10 r)}^{2}} = \frac{10}{1}$

$\frac{ε_{1}}{ε_{2}} = \frac{10}{1} = \frac{X}{1},$

$∴ x = 10$

Q 6 :
A big drop is formed by coalescing 1000 small droplets of water. The ratio of surface energy of 1000 droplets to that of the energy of the big drop is $\frac{10}{x}$ . The value of $x$ is ____. [2024]

0%

(1)

$1000 \frac{4}{3} π r^{3} = \frac{4}{3} π R^{3} \Rightarrow R = 10 r$

Surface energy of 1000 drops $= 1000 \times T \times 4 π r^{2}$

Surface energy of bigger drop $= T \times 4 π R^{2}$

$\frac{S.E. of 1000 drops}{S.E. of Big drop} = \frac{1000 (4 π r^{2}) T}{4 π R^{2} T} = \frac{1000 \times r^{2}}{{(10 r)}^{2}}$

$\Rightarrow \frac{S.E. of 1000 drops}{S.E. of Big drop} = 10 = \frac{10}{x}$

$∴$ $x = 1$

Q 7 :

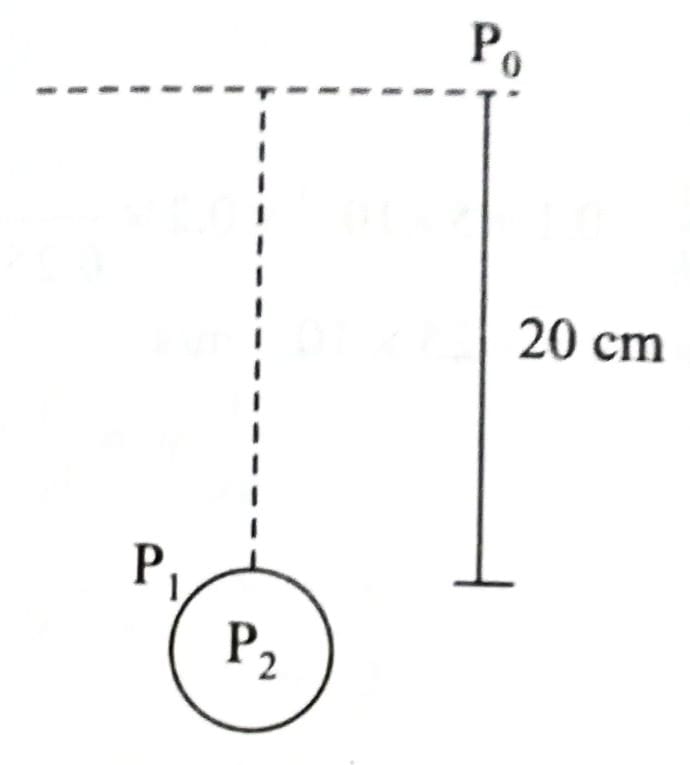

An air bubble of radius 0.1 cm lies at a depth of 20 cm below the free surface of a liquid of density 1000 $kg / m^{3}$ . If the pressure inside the bubble is 2100 $N / m^{2}$ greater than the atmospheric pressure, then the surface tension of the liquid in SI unit is (use g = 10 $m / s^{2}$ ) [2025]

0.02
0.1
0.25
0.05

1

2

3

4

(4)

$P_{1} = P_{0} + p g h = P_{0} + 1000 \times 10 \times \frac{20}{100}$

$\Rightarrow P_{1} = P_{0} + 2000$

So, $P_{2} - P_{1} = \frac{2 T}{R} = (\frac{2 T}{1 \times 10^{- 3}})$

$\Rightarrow P_{2} = P_{0} + 2100$ (given)

So, $P_{0} + 2100 - P_{0} - 2000 = 2 T \times 10^{3}$

$\Rightarrow 100 = 2 T \times 10^{3}$

$\Rightarrow T = (\frac{1}{20}) = 0.05 N / m$

Q 8 :
The amount of work done to break a big water drop of radius 'R' into 27 small drops of equal radius is 10 J. The work done required to break the same big drop into 64 small drops of equal radius will be [2025]

15 J
10 J
20 J
5 J

1

2

3

4

(1)

The amount of work done to break a big water drop into small drops,

$W = △ U = T △ A$

One drop to n drops

$\frac{4}{3} π R^{3} = n \frac{4}{3} π r^{3} \Rightarrow r = \frac{R}{n^{\frac{1}{3}}}$

So, $W = T (n 4 π r^{2} - 4 π R^{2}) = T 4 π R^{2} (n^{1 / 3} - 1)$

For one drop to 27 drops

$W = T 4 π R^{2} (27^{1 / 3} - 1)$ ...(i)

For one drop to 64 drops

$W' = T 4 π R^{2} (64^{1 / 3} - 1)$ ...(ii)

(ii)/(i)

$\frac{W'}{W} = \frac{4 - 1}{3 - 1} = \frac{3}{2} \Rightarrow W' = \frac{3}{2} W = 15 J$

Q 9 :
Consider following statements:

A. Surface tension arises due to extra energy of the molecules at the interior as compared to the molecules at the surface, of a liquid.

B. As the temperature of liquid rises, the coefficient of viscosity increases.

C. As the temperature of gas increases, the coefficient of viscosity increases.

D. The onset of turbulence is determined by Reynold's number.

E. In a steady flow two stream lines never intersect.

Choose the correct answer from the options given below: [2025]

A, D, E only
C, D, E only
B, C, D only
A, B, C only

1

2

3

4

(2)

Surface tension arises due to extra energy of the molecules at the surface as compared to the interior of a liquid. The coefficient of viscosity for a liquid decreases with rise in temperature where as it increases for gases with increase in temperature. The flow is turbulent for a Reynold's number greater than 2000. Stream lines never intersect in a steady flow.

Q 10 :
Two water drops each of radius 'r' coalesce to from a bigger drop. If 'T' is the surface tension, the surface energy released in this process is: [2025]

$4 π r^{2} T [2 - 2^{\frac{2}{3}}]$
$4 π r^{2} T [2 - 2^{\frac{1}{3}}]$
$4 π r^{2} T [1 + \sqrt{2}]$
$4 π r^{2} T [\sqrt{2} - 1]$

1

2

3

4

(1)

$2 \times \frac{4}{3} π r^{3} = \frac{4}{3} π R^{3} \Rightarrow R = 2^{1 / 3} r$

$E_{i} = 2 \times 4 π r^{2} T$

$E_{f} = 4 π R^{2} T = 4 π r^{2} 2^{2 / 3} T$

Heat lost $△ Q = E_{i} - E_{f} = 4 π r^{2} T [2 - 2^{2 / 3}]$
